HV Transformer Bushings

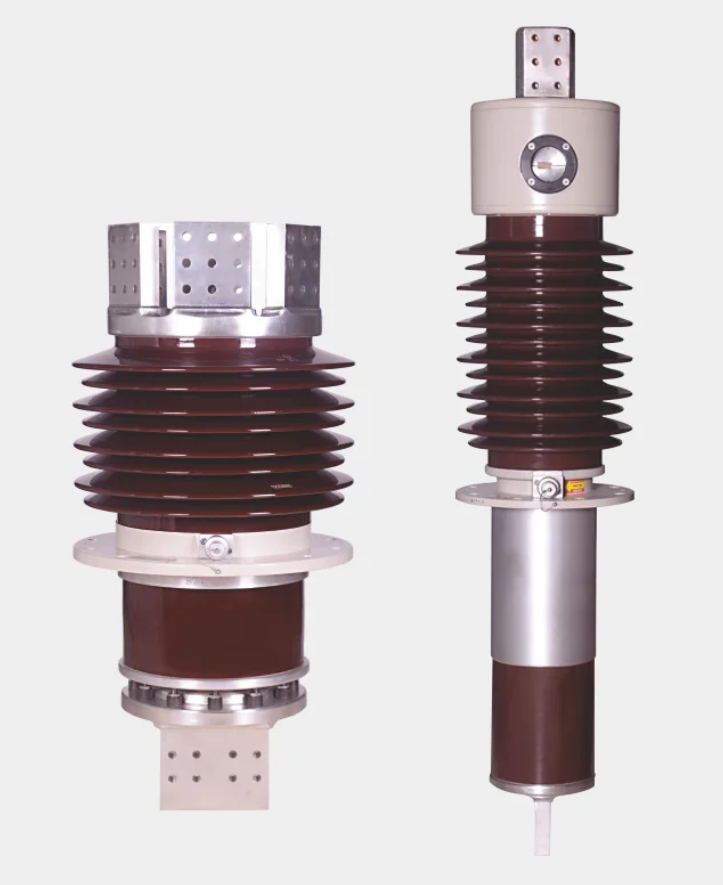

High Current Bushings
High current transformer bushings engineered for generator step-up transformers with superior thermal stability, high current carrying capability and reliable insulation performance for heavy-duty HV applications.
category
HV Transformer Bushing
application title
FOR GENERATOR STEP-UP TRANSFORMERS
rated voltage
24 kV – 52 kV
rated current
Up to 25000 A
insulation
Oil-impregnated paper / Oil filled – Hermetically Sealed / Oil Communicating
application
Transformer – Outdoor
type
Oil to Air
standard
IEC 60137:2017 / IEEE C57.19.00/01
conductor
Aluminum / Copper
Key Features
Exact interchangeability with global reputed makes
High strength porcelain as per IEC 60815
Shortest lead time industry-wide
Suitable for Bus-duct operation
Excellent thermal performance
No joint on the conductor below the top cap level
Note
Special / Higher voltage ratings also available upon request
